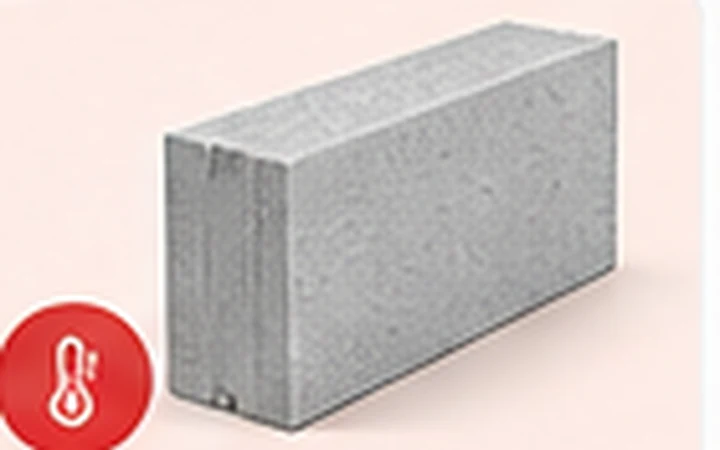

TERMECO
Format600 × 250 mm
Widths200 · 250 · 300 mm
Density350 kg/m³
Autoclaved Aerated Concrete Blocks
Compare BAUBLOCK autoclaved aerated concrete (AAC) block families by intended application, then open individual products for dimensions, technical information and ordering.
Product dimensions
BAUBLOCK Block Family Dimensions
Key dimensions for the BAUBLOCK block families available through BlocoCelular. O-TEC and U-TEC geometry is shown in the manufacturer drawings below.

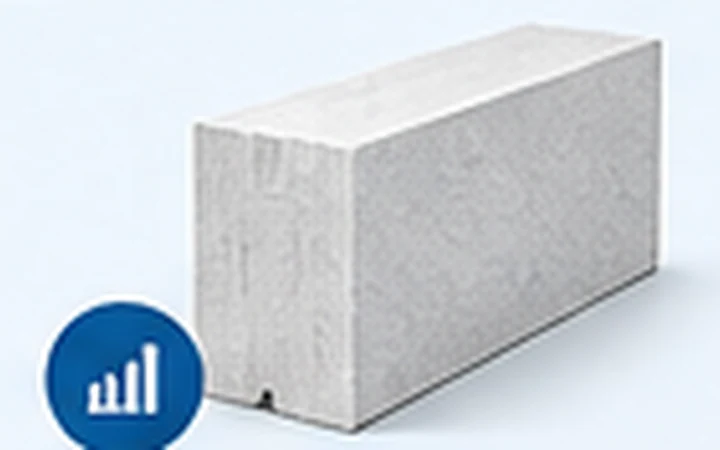

UTILITAS
Format600 × 250 mm
Widths200 · 250 mm
Density400 kg/m³

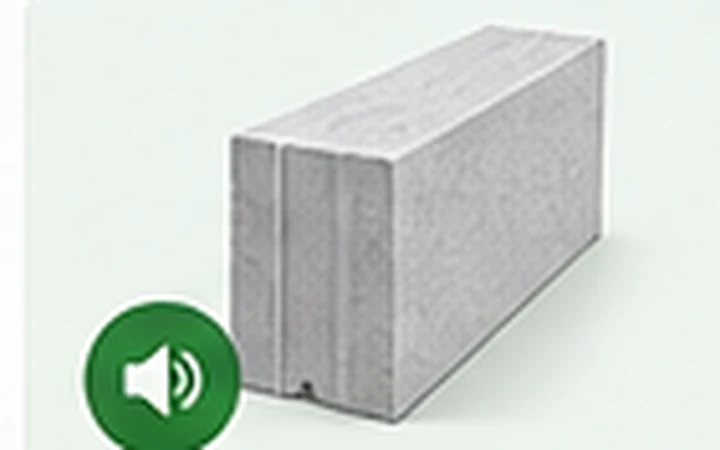

SILENSO
Format600 × 250 mm
Widths75 · 85 · 100 · 150 mm
Density500 kg/m³

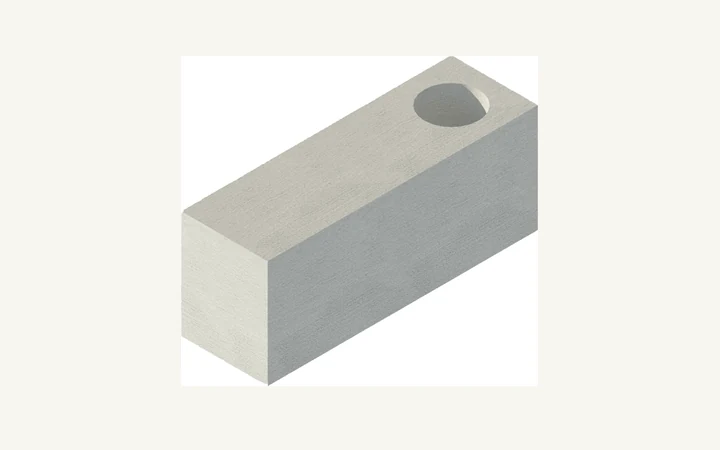

O-TEC
Format600 × 250 mm
Width / core200 / Ø120 · 250 / Ø150 · 300 / Ø150 mm
Density350 kg/m³

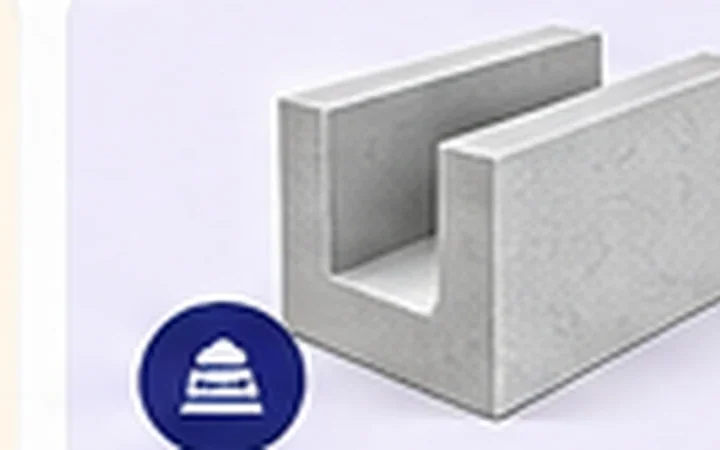

U-TEC
Format600 × 250 mm
Widths200 · 250 · 300 mm
Density350 kg/m³
Manufacturer technical drawings
Manufacturer technical drawings
Manufacturer drawings are shown where available. Product dimensions and technical documents can also be opened from the individual product pages.

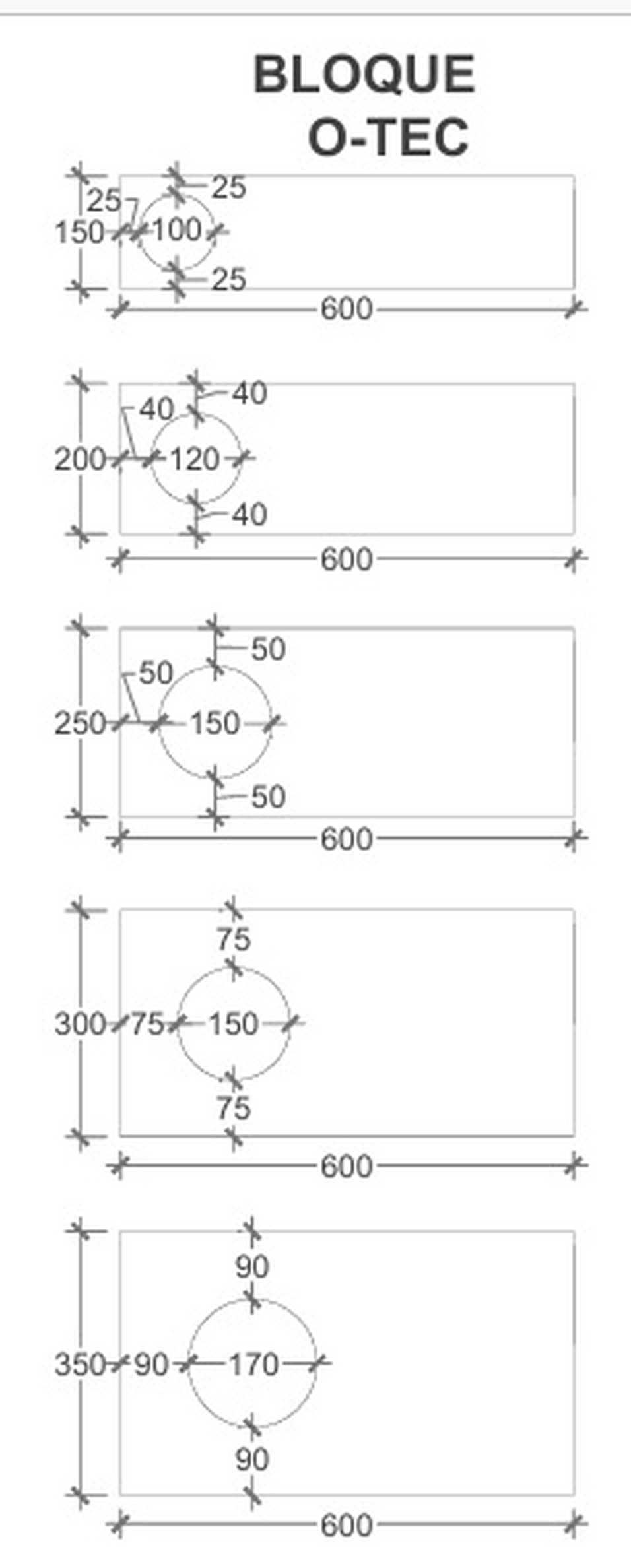

O-TEC manufacturer dimensions
BAUBLOCK O-TEC dimensional drawing for 200, 250 and 300 mm products. Core diameters are Ø120, Ø150 and Ø150 mm respectively.
View full-size drawing →U-TEC manufacturer dimensions
BAUBLOCK U-TEC dimensional drawing for 200, 250 and 300 mm products, including the channel geometry.
View full-size drawing →BAUBLOCK TERMECO 30
Low-density thermal AAC block for 300 mm walls.
€ 9.85 / unit incl. IVA (23%)€ 8.01 net
BAUBLOCK TERMECO 25
Low-density thermal AAC block for 250 mm walls.
€ 8.19 / unit incl. IVA (23%)€ 6.66 net
BAUBLOCK TERMECO 20
Low-density thermal AAC block for 200 mm walls.
€ 6.56 / unit incl. IVA (23%)€ 5.33 net
BAUBLOCK UTILITAS 25
Medium-density AAC block balancing strength and thermal performance for 250 mm walls.
€ 8.34 / unit incl. IVA (23%)€ 6.78 net
BAUBLOCK UTILITAS 20
Medium-density AAC block balancing strength and thermal performance for 200 mm walls.
€ 6.67 / unit incl. IVA (23%)€ 5.42 net
BAUBLOCK SILENSO 15
Higher-density AAC block for substantial internal walls and acoustic applications for 150 mm walls.
€ 4.98 / unit incl. IVA (23%)€ 4.05 net
BAUBLOCK SILENSO 10
Higher-density AAC block for substantial internal walls and acoustic applications for 100 mm walls.
€ 3.62 / unit incl. IVA (23%)€ 2.94 net
BAUBLOCK SILENSO 8.5
Higher-density AAC block for substantial internal walls and acoustic applications for 85 mm walls.
€ 3.09 / unit incl. IVA (23%)€ 2.51 net
BAUBLOCK SILENSO 7.5
Higher-density AAC block for substantial internal walls and acoustic applications for 75 mm walls.
€ 2.72 / unit incl. IVA (23%)€ 2.21 net
